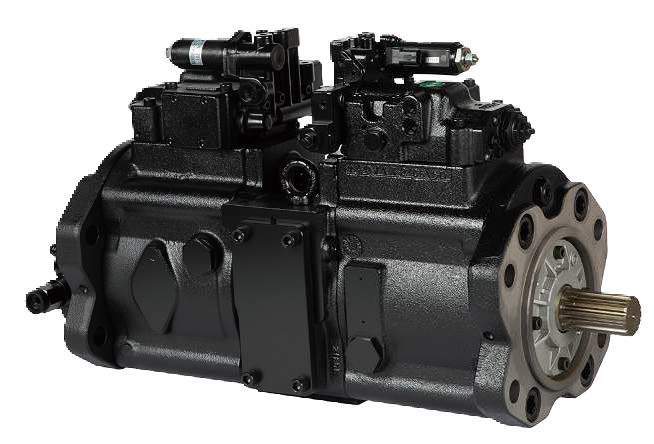

K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM

Name: K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM
Brand: Guangzhou Tiangong Machinery Equipment Co., Ltd.
SKU: SK230-6E
Price: 945.00 USD
Availability: InStock

পণ্যের বিবরণ

পরিচিতিমুলক নাম: TGFQ

মডেল নম্বার: SK230-6E

পেমেন্ট ও শিপিংয়ের শর্তাবলী

ন্যূনতম চাহিদার পরিমাণ: 1

মূল্য: 945.00usd

পরিশোধের শর্ত: টিটি/এলসি/

যোগানের ক্ষমতা: 300+

সেরা দাম পান

পণ্যের বিবরণ

পণ্যের বর্ণনা

বিশেষভাবে তুলে ধরা:
                                                                                                                                                                                                                                                                                                                                                SK230-6E excavator hydraulic pump, K3V112DTP-9TEL main pump, LQ10V00006F1 hydraulic system pump


অংশ নাম:	হাইড্রোলিক পাম্প	কুলিটি:	শীর্ষ মানের
প্রযোজ্য শিল্প:	যন্ত্রপাতি মেরামত দোকান, শক্তি ও খনির	অংশ নম্বর:	LQ10V00006F1
পাম্প নম্বর:	K3V112DTP-9TEL	ওজন:	155 কেজি
বালতি ক্ষমতা:	0.২ মি৩	মোডে প্রয়োগ করুন:	কোবেলকো / হাইড্রোলিক খননকারী
যান্ত্রিক:	খননকারী

অংশ নাম:	হাইড্রোলিক পাম্প
কুলিটি:	শীর্ষ মানের
প্রযোজ্য শিল্প:	যন্ত্রপাতি মেরামত দোকান, শক্তি ও খনির
অংশ নম্বর:	LQ10V00006F1
পাম্প নম্বর:	K3V112DTP-9TEL
ওজন:	155 কেজি
বালতি ক্ষমতা:	0.২ মি৩
মোডে প্রয়োগ করুন:	কোবেলকো / হাইড্রোলিক খননকারী
যান্ত্রিক:	খননকারী

K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM

Product Introduction Enhanced Safety Features for Operator Protection
Safety is a top priority on construction sites, and the K3V112DTP-9 incorporates enhanced safety features that protect both the operator and the SK230-6E LQ10V00006F1 excavator. The pump is equipped with a pressure relief valve that prevents excessive pressure buildup in the hydraulic system, reducing the risk of component failure and hydraulic oil leaks. Additionally, the pump’s electronic control system includes a fault-detection feature that alerts the operator to potential issues, such as low oil levels or high temperatures, allowing for timely intervention. The K3V112DTP-9 also meets international safety standards, ensuring compliance with strict safety regulations in various countries. For construction companies that prioritize safety, the enhanced safety features of the K3V112DTP-9 provide peace of mind and reduce the risk of accidents on the job site.
Parts Show

K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM 0

K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM 1

K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM 2

Pos.	Part No	Qty	Parts name
NSS.	LQ10V00006F1	[1]	HYDRAULIC PUMP
111	2437U420S111	[1]	SHAFT
113	YN10V00013S113	[1]	SHAFT
114	2437U213S114	[1]	COUPLING
123	2437U213S123	[2]	BEARING
124	2437U213S124	[2]	BEARING
127	2441U723S127	[4]	SPACER
141	NSS	[2]	NOT SOLD SEPARAT
151	NSS	[18]	NOT SOLD SEPARAT
152	NSSS	[18]	NOT SOLD SEPARAT
153	2437U213S153	[2]	PLATE
156	YN10V00005S156	[2]	BUSHING
157	2437U213S157	[18]	SPRING
211	2441U242S211	[2]	PLATE
212	NSS	[2]	NOT SOLD SEPARAT
214	NSS	[2]	NOT SOLD SEPARAT
251	2437U213S251	[2]	PLATE
261	2437U420S261	[1]	COVER
271	2437U213S271	[2]	CASE
312	2437U213S312	[1]	COUPLING BLOCK
313	NSS	[1]	NOT SOLD SEPARAT
314	NSS	[1]	NOT SOLD SEPARAT
325	YN10V00013S325	[1]	COVER
401	2437U213S401	[8]	SCREW
406	ZS23C08020	[4]	SCREW,Hex Socket Head, M8 x 20mm
407	ZS23C06030	[3]	SCREW,Hex Socket Head, M6 x 30mm
466	2441U667S466	[2]	PLUG
468	2441U436S469	[4]	PLUG
490	2441U722S490	[20]	PLUG
531	NSS	[2]	NOT SOLD SEPARAT
532	2437U213S532	[2]	PISTON
534	2437U213S534	[2]	STOP
535	2437U213S535	[2]	STOP
546	YN10V00013S546	[2]	SPACER
548	NSS	[2]	NOT SOLD SEPARAT
708	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm
710	ZD12G09500	[1]	O-RING,3.1mm Thk x 94.4mm ID, 90 Duro
717	ZD12G14500	[4]	O-RING,144.40mm ID x 150.60mm OD x 3.10mm
724	ZD12P00800	[16]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro
725	ZD12P01100	[7]	O-RING
728	ZD12P02400	[4]	O-RING
732	ZD12P01800	[2]	O-RING
774	2441U474S774	[1]	OIL SEAL
789	ZD85P01800	[2]	RING
792	ZD85G03500	[2]	RING
806	ZN12C16010	[2]	NUT
808	ZN17C20012	[2]	NUT
824	ZR16X04000	[2]	RING
885	2441U723S885	[2]	PIN
886	ZP26D06014	[4]	PIN
901	ZS91C01000	[2]	BOLT
953	2437U188S953	[2]	CAP,M10 x 20mm
954	2437U213S954	[2]	SCREW
981	2437U407S981	[1]	LABEL
983	2437U407S983	[2]	RIVET
